Customized Hydraulic Cylinders

Products

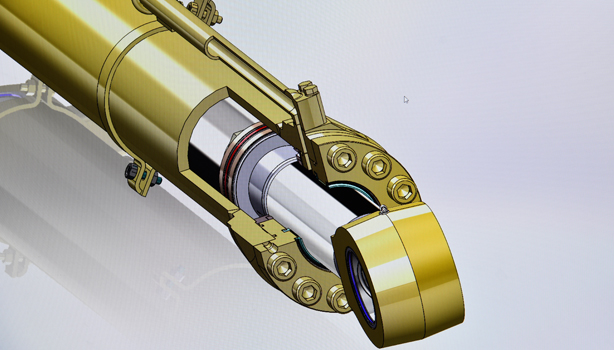

At Dantal, we design and produce a comprehensive range of customized Hydraulic Cylinders where precision and performance unite in perfect harmony.

Our experienced team specializes in crafting tailored products for a wide array of applications, ensuring exceptional service for our customers.We efficiently and cost-effectively incorporate slight adjustments to our standard modular elements, aligning them with our customers' specific needs. Our process begins with a detailed questionnaire to capture every intricate detail of the customer’s requirements.

You can trust us to bring your vision to life with exquisitely crafted cylinders designed to perfectly suit your needs.

Our custom-made range of cylinders

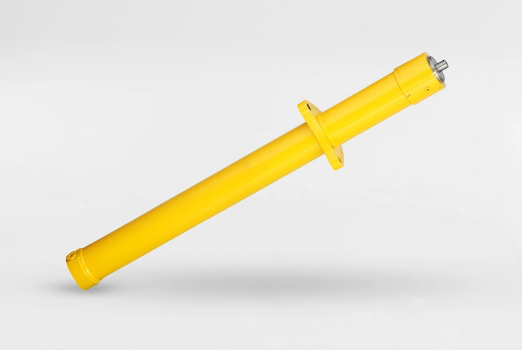

Single-Acting Cylinders

A single-acting Hydraulic Cylinder functions by using hydraulic fluid pressure exerted on one side of the piston, resulting in force generation in a singular direction.

This force is used to execute operations such as elevating, propelling, dragging, or maintaining weights/loads within a system. The cylinder operates by using the principle of transforming hydraulic energy into mechanical force, making it a crucial element in several industrial and mobile applications.

The range of single-acting Hydraulic Cylinders that we manufacture comes in a wide array of configurations to suit specific requirements:

Download Brochure

Specifications

  • Bore up to - 500mm
  • Rod Dia - as per load requirements
  • Stroke up to -11000mm.
Spring-Return Cylinders

These cylinders feature a spring mechanism that returns the piston to its original position once hydraulic pressure is released.

Gravity-Return Cylinders

Gravity-return cylinders rely on gravitational force to retract the piston when hydraulic pressure is released.

RAM-Type Design

RAM-Type single-acting cylinders feature a piston rod that extends directly from one end of the cylinder barrel.

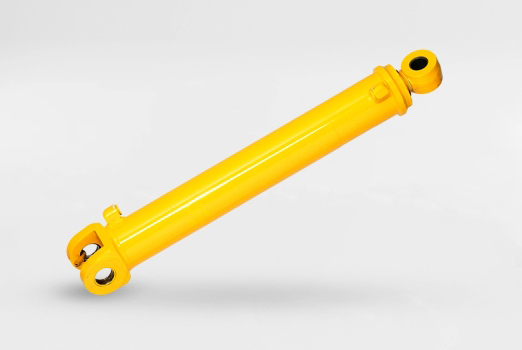

Double-Acting Cylinders

The double-acting Hydraulic Cylinders that we manufacture function by applying hydraulic pressure to both sides of the piston, allowing for the generation of force in two directions. This exceptional feature allows for precise movement of both extension and retraction providing increased flexibility and effectiveness in a wide range of Hydraulic Systems.

Double-acting cylinders are ideal for applications that call for precise and dynamic motion, thanks to their ability to harness hydraulic energy and generate mechanical force in both directions.

Double-acting cylinders find extensive use in a multitude of industrial applications that demand meticulous command over both extension and retraction. These applications span across machine tools, presses, construction equipment, and agricultural machinery.

Download Brochure

Specifications

  • Bore up to - 500mm
  • Rod Dia – As per load requirements
  • Stroke up to - 11000mm

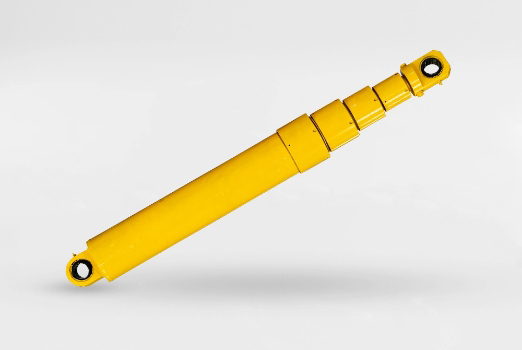

Telescopic Cylinders

The multi-stage or tandem cylinders we manufacture consist of multiple stages intricately layered, each equipped with its own piston and cylinder.

This design allows for a greater overall stroke length while maintaining a sleek and efficient profile. Multi-stage cylinders are ideal for applications requiring a significant stroke length despite spatial limitations, such as hydraulic lifts, garbage trucks, refuse compactors and certain construction equipment.

By utilizing multiple stages, these cylinders achieve higher stroke lengths while preserving a compact design in specified closed length.

Download Brochure

Specifications

  • Bore up to - 500mm
  • Rod Dia – as per load requirements
  • Stroke up to - 11000mm

Customized Cylinder Questionnaire

All field are mandatory

Bore /Piston
Rod Diameter
Stoke
Closed Length
